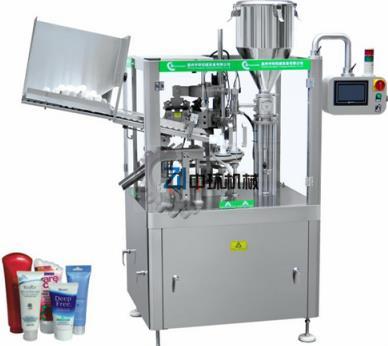

全自动软管灌装封尾机 ZHY-60YP

Plastic Tube Filling and Sealing Machine

主要特点:
该机结构紧凑、自动上管、传动部分全封闭。
该机由全自动操作系统完成供管、洗管、识标、灌装、热溶、封尾、打码、修整、出成品全过程。
由气动方式完成供管、洗管，动作准确可靠。
Compact design and auto tube feed. Driving part fully-closed.
Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system.
Tube washing and feeding conducted pneumatically, accurate and reliable.

技术参数Technical Parameters
充填容量Filling volume: 1-250ml/unit (Adjustable)
充填误差Filling accuracy: ≦±1﹪
生产能力Capacity: 2400-3000unit/hour, Adjustable
软管直径Tube diameter: Φ10-50 mm
软管高度Tube length: 50-200mm
料桶容积Hopper volume: 40L
工作电压Power: 380V/220V (Optional)
工作气压Air pressure: 0.4-0.6 MPa
机器功率Machine power: 7kw
